Controller Works

mini36 Low Profile Ergonomic Keyboard

mini36 Low Profile Ergonomic Keyboard

Regular price Rs. 25,490.71
Regular price Rs. 29,838.62 Sale price Rs. 25,490.71
Sale Sold out
Color



NO SOLDERING REQUIRED! The mini36 is a 36 key low profile ergonomic split keyboard with a layout inspired by the Corne (CRKBD). Key features include:

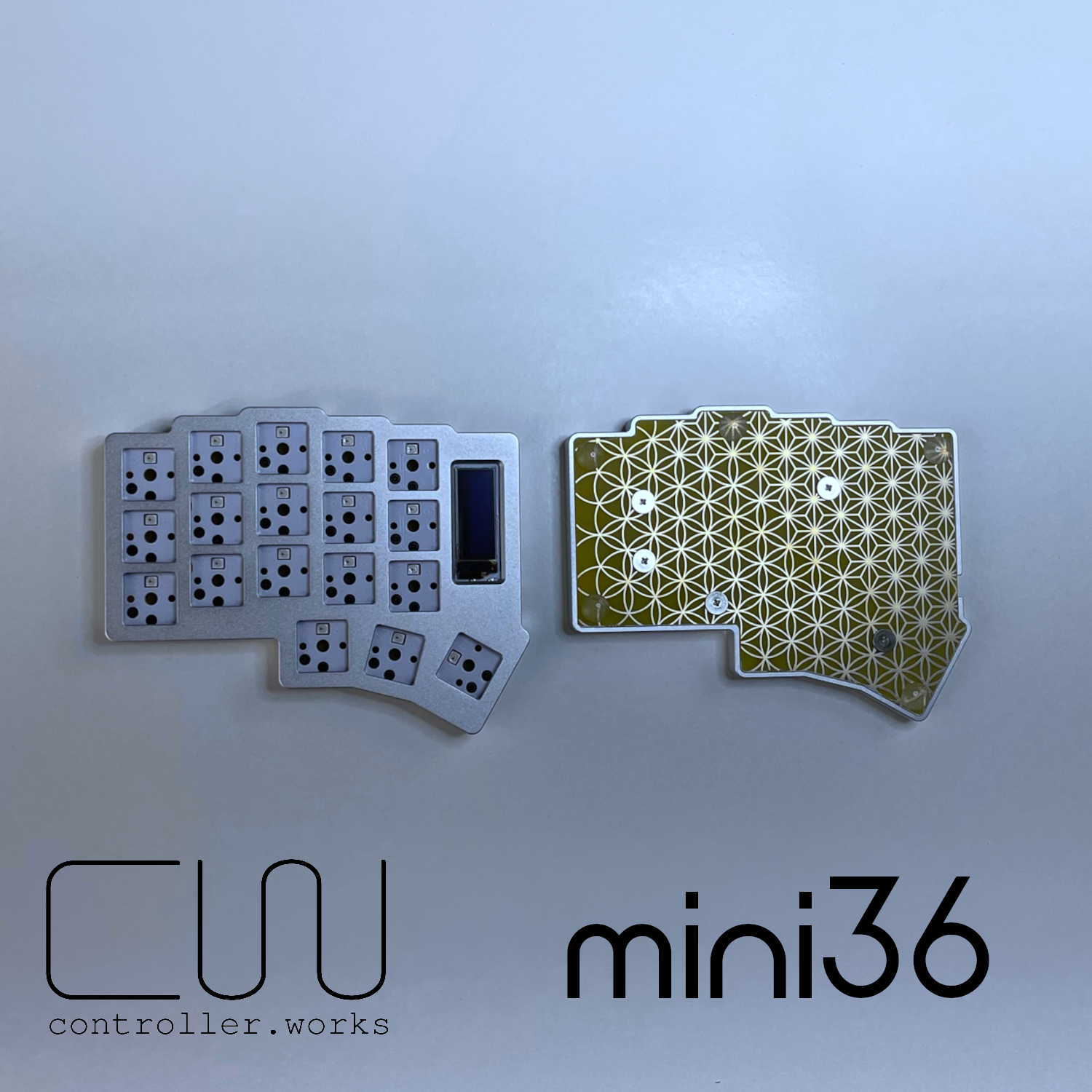

  • Pre-built, fully integrated design: RP2040 processor, OLED display, and connectors are integrated with the main board for a slim 8mm thickness for the main case body.

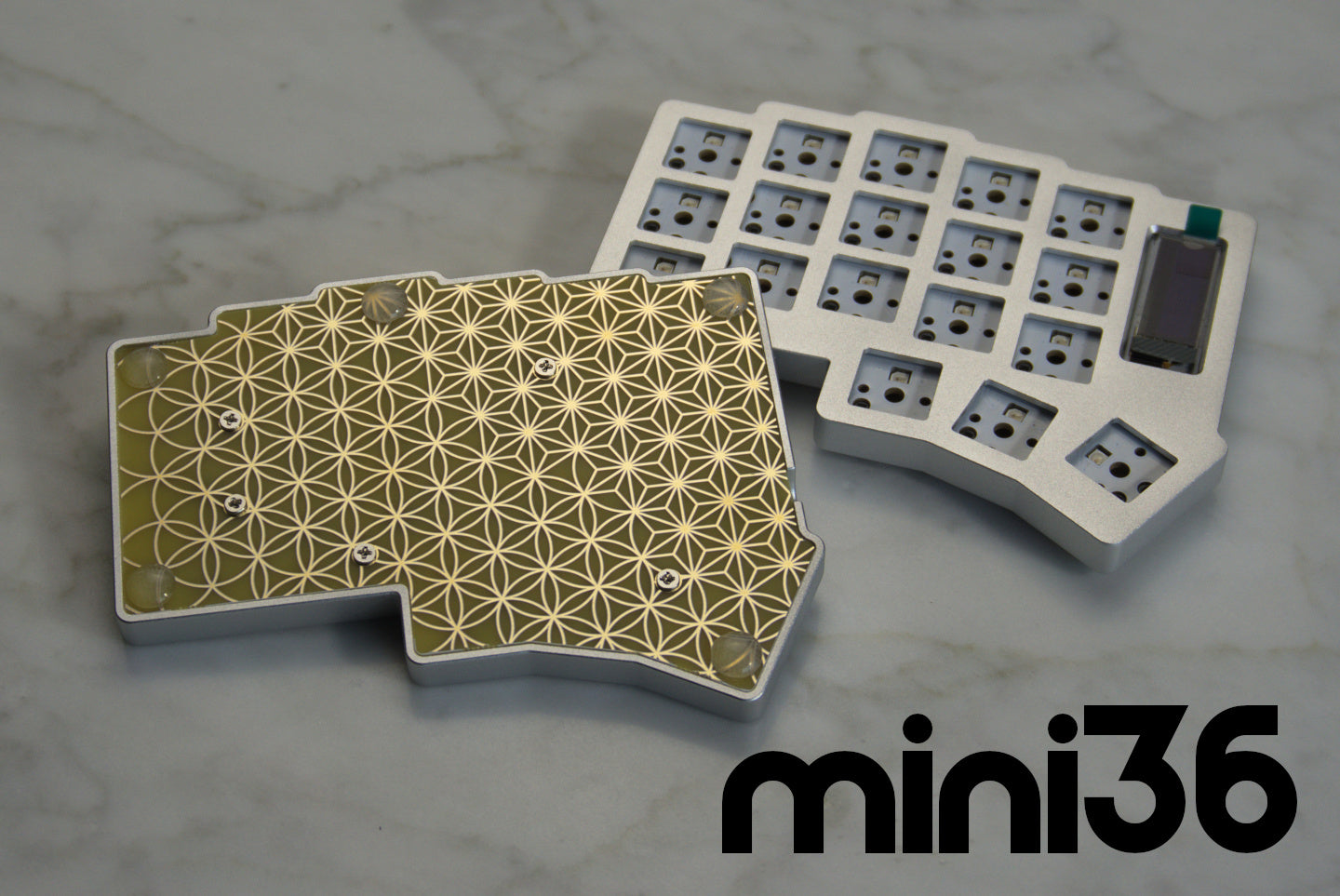

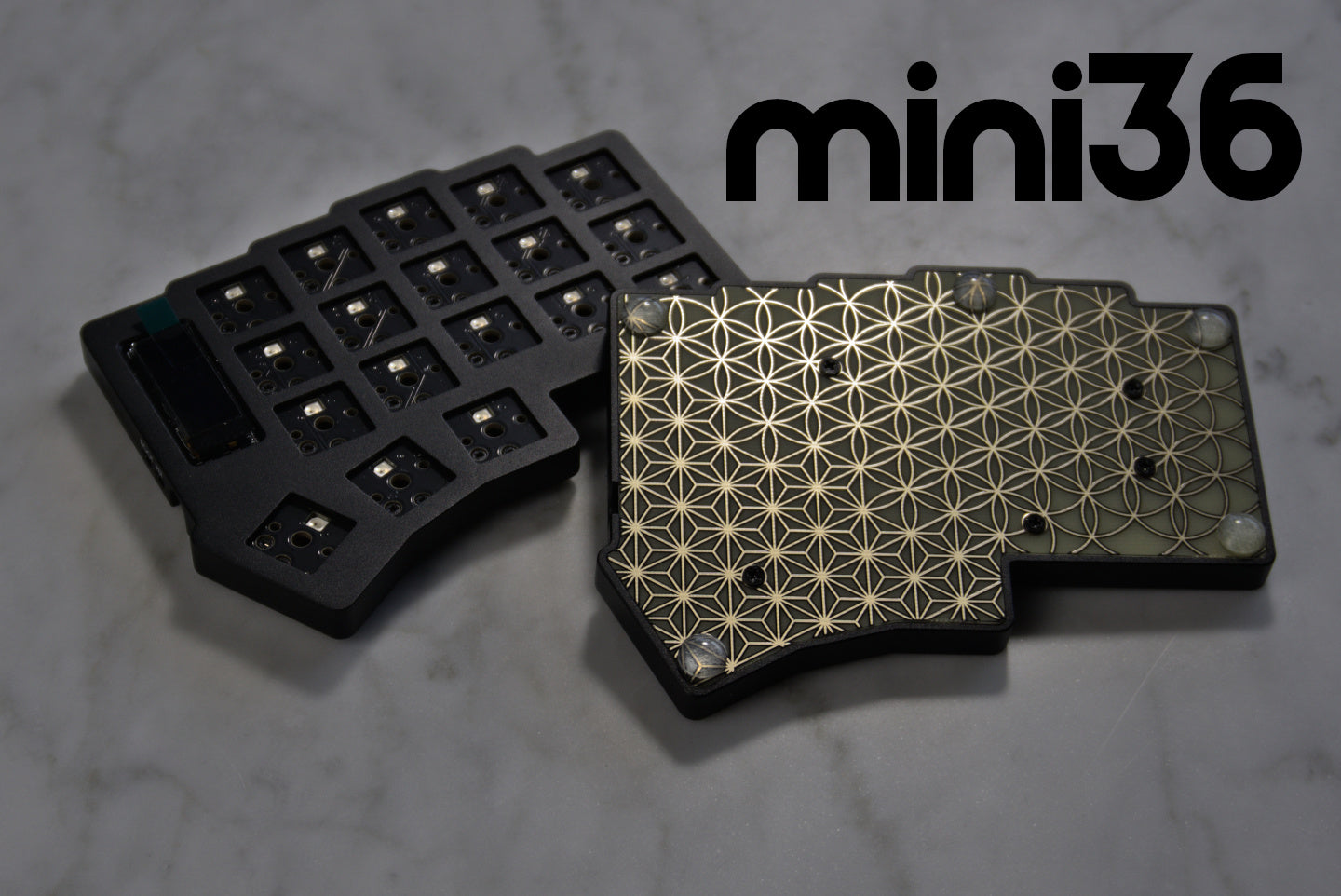

  • CNC milled anodized aluminum case

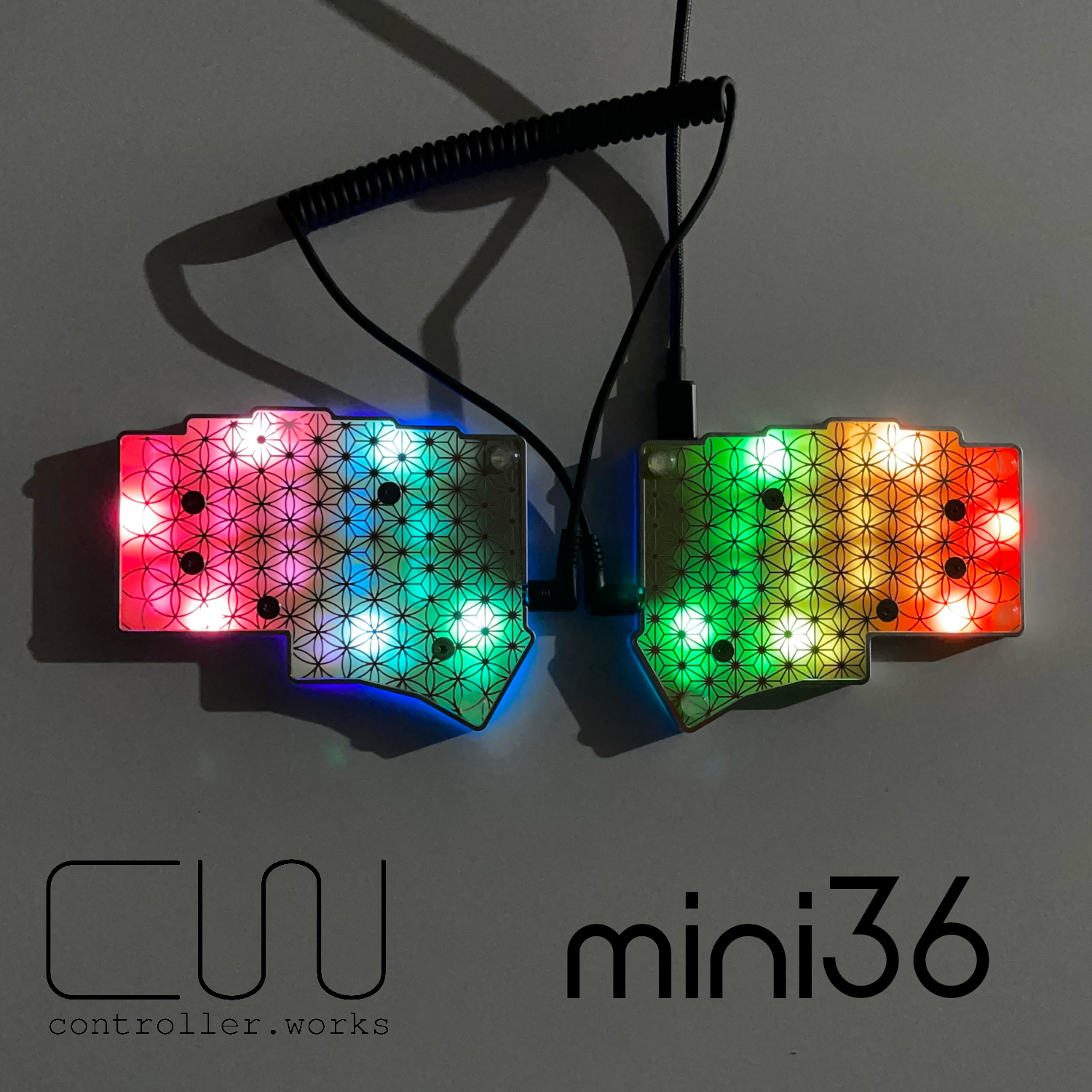

  • Per-key LEDs and LED back lighting

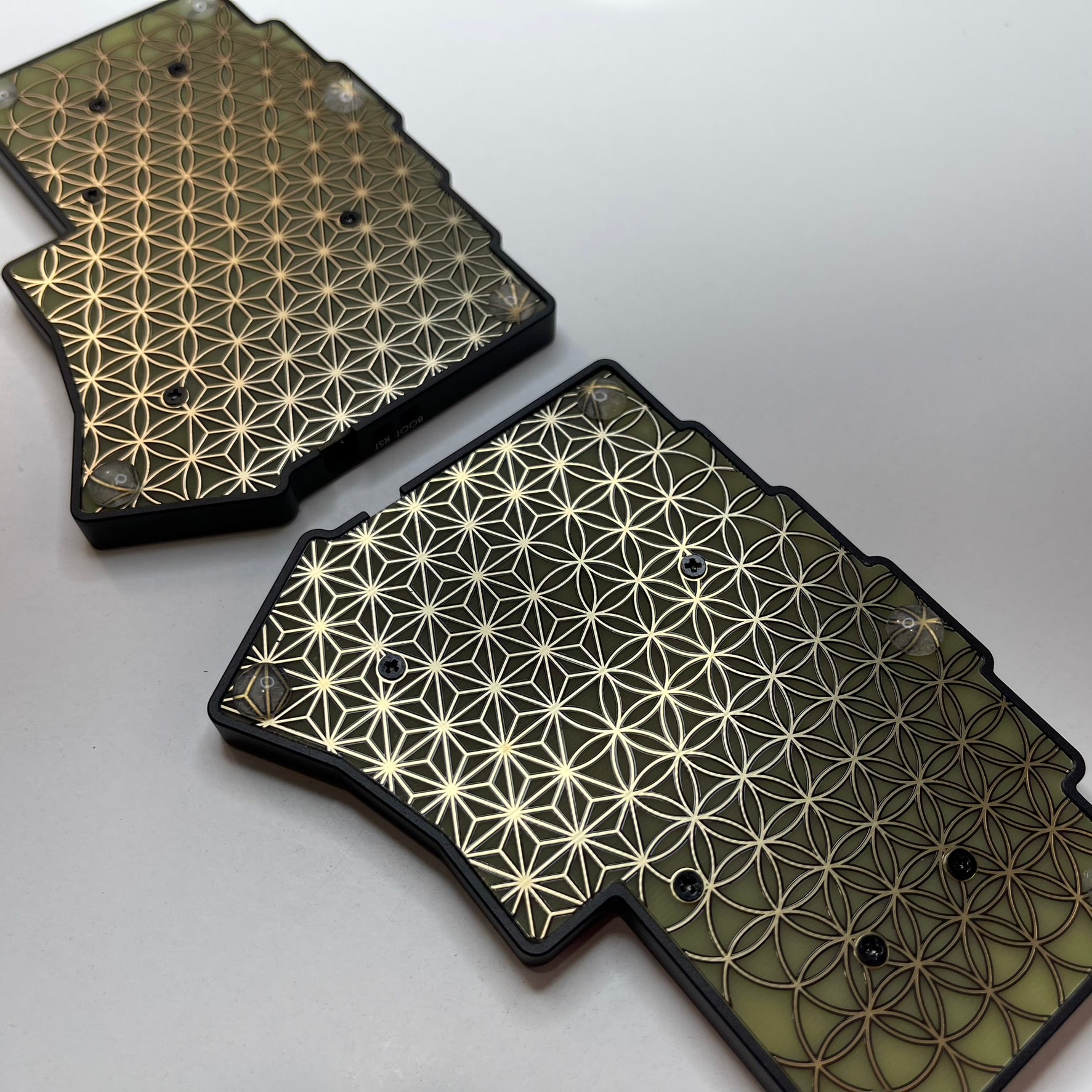

  • Shine-through filigree style back plate finished in real gold
  • "Chocolate" spacing: switches are spaced 18mm (width) x 17mm (height) apart
  • USB-C and TRRS connectors have over-current and ESD protection
  • Hot-swap sockets
  • Pre-loaded with QMK Firmware with Vial support
  • Premium construction: RoHS components, lead-free solder paste on all PCBs. Back plates are finished in gold.

Powered by QMK Firmware


Included:

  • Left and right keyboard halves with integrated micro-controllers, OLED displays, and connectors
  • TRRS cable

Required for Operation:

  • 36 Kailh "Chocolate" switches
  • 34 Kailh "Chocolate" 1u keycaps
  • 2 Kailh "Chocolate" 1.5u keycaps
  • 1 USB-C cable

Product Comparison

Feature mini36 Low Profile Corne Chocolate
Soldering Pre-built DIY
Connection
USB-C, TRRS
Depends on micro-controller board, TRRS
Processor RP2040 ATMega32U4
Program Memory 16 MB 1 KB
Clock 133 MHz 16 MHz
Firmware QMK
QMK
Keymap Via/Vial/QMK Configurator Via
Spacing Chocolate MX
Lighting Per-key and back-light Per-key and back-light optional
Display OLED integrated OLED module
Backplate Gold shine-through filigree PCB PCB
Switches Kailh Chocolate only
Keycaps Chocolate spacing only MX spacing
Circuit Protection ESD and over-current on USB-C and TRRS N/A



*** Please note that there may be light tooling marks in the interior of the case. This is expected.

Materials

Shipping & Returns

International shipping can be complex. Please ask on chat for custom shipping quotes for international orders. Key cap sets can be shipped in a small bag or in the original packaging for an additional charge.
