Corne OB Low Profile Ergonomic Keyboard

The Corne OB design has been superseded by the mini36 and mini42 keyboards. They have the same layout with upgraded processors, memory, and industrial design.

NO SOLDERING REQUIRED! The Corne OB is a 42 key low profile ergonomic split keyboard designed for Kailh Chocolate switches. Key features include:

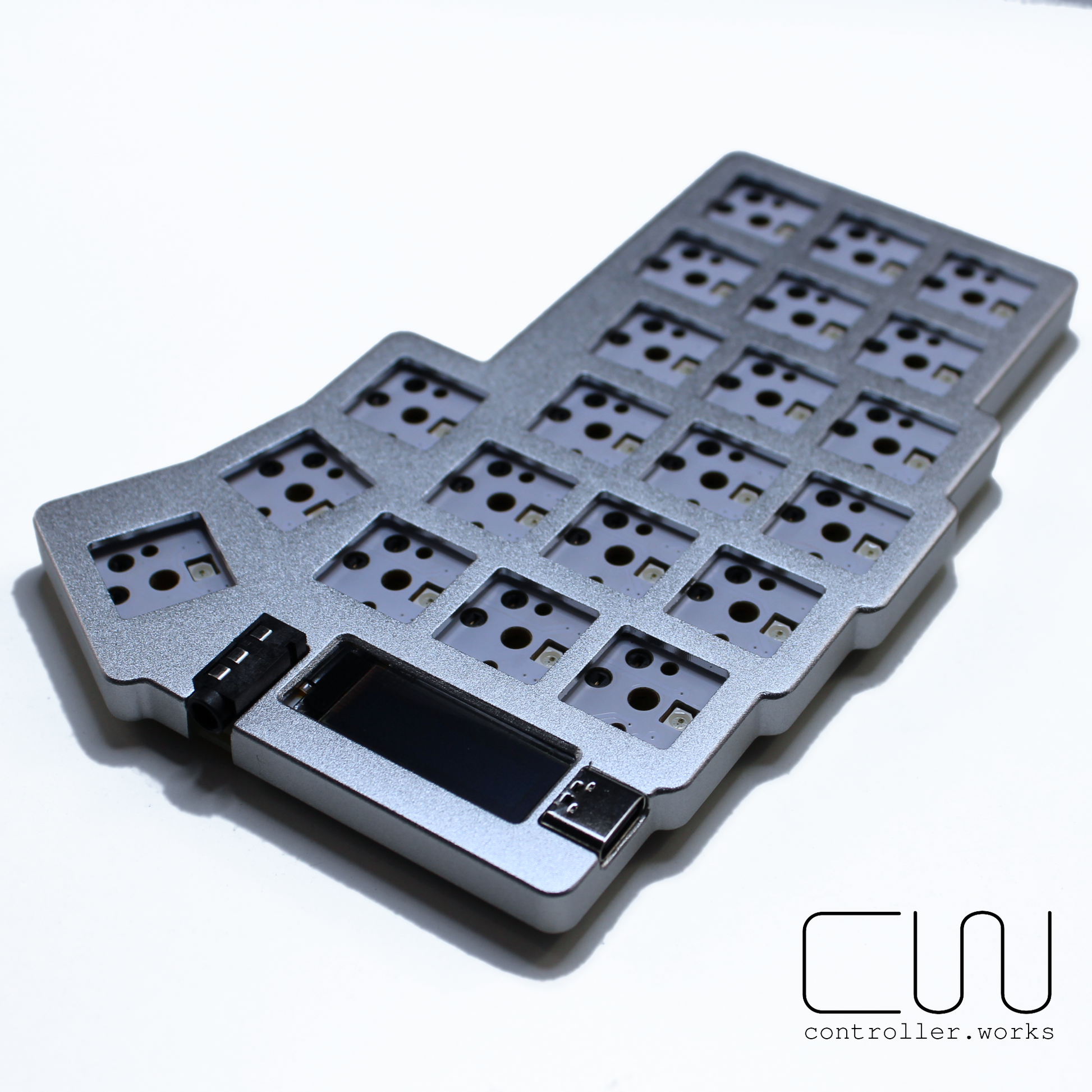

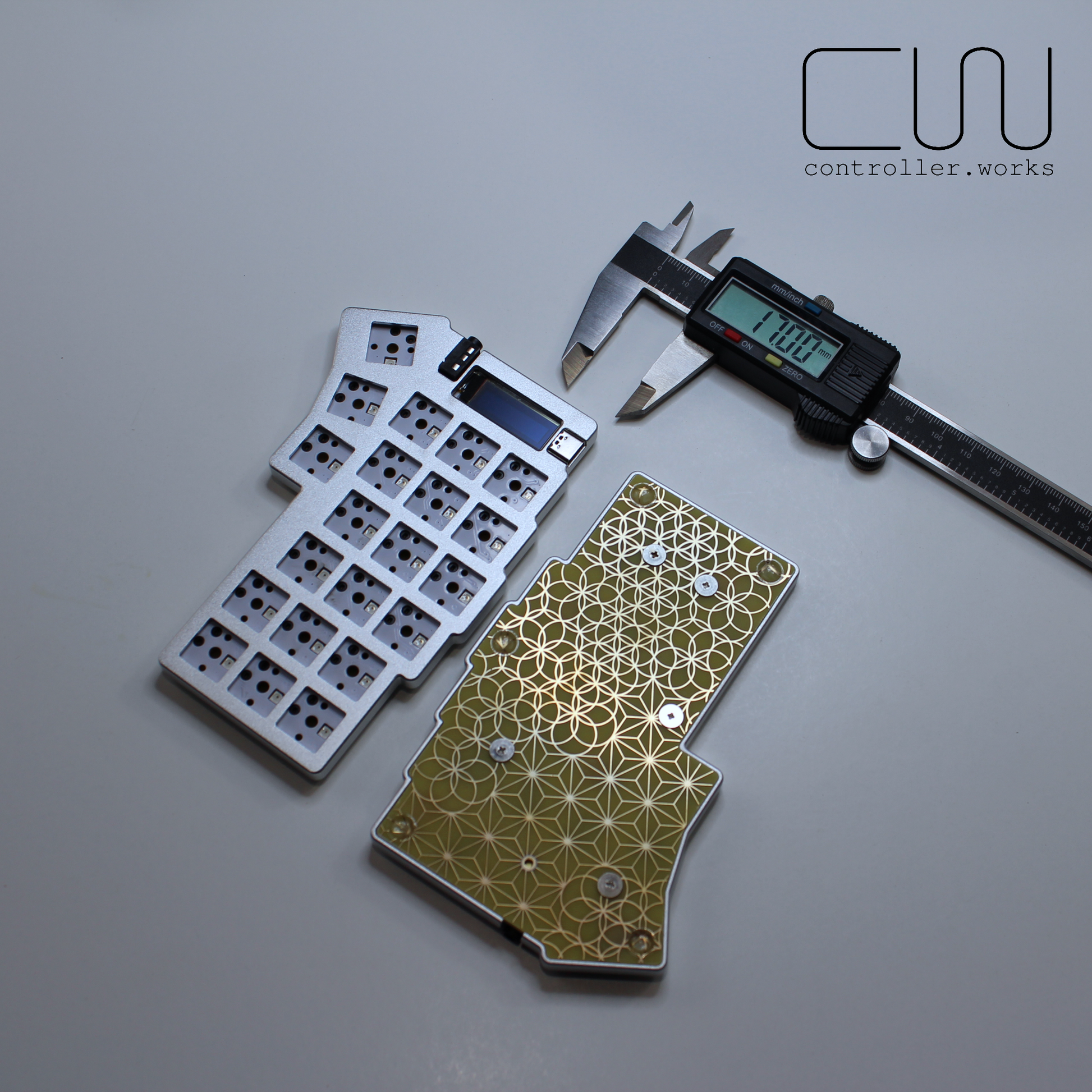

• Pre-built, fully integrated design: Atmega32U4 processor, OLED display, and connectors are integrated with the main board for a slim 8mm thickness for the main case body.

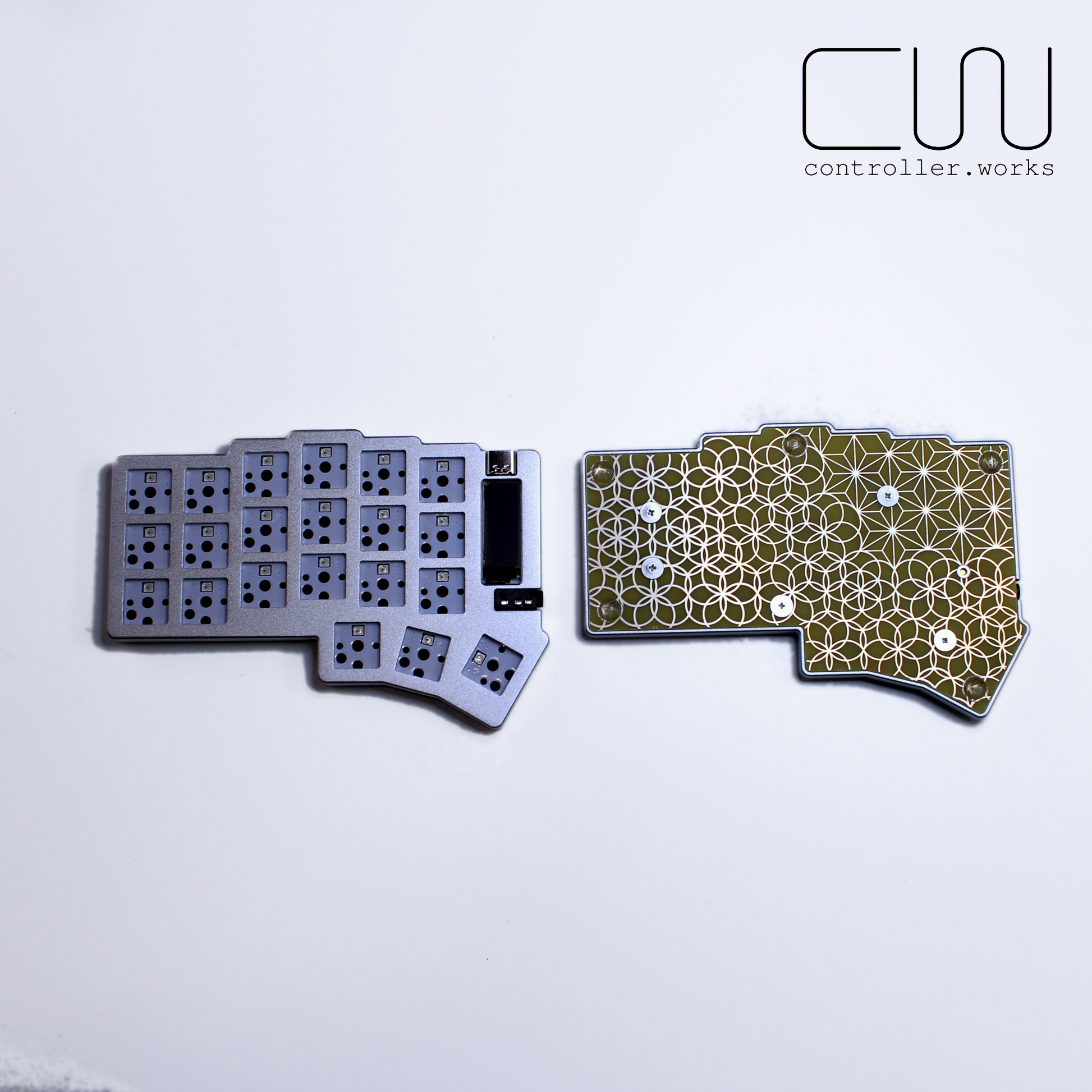

• CNC milled silver anodized aluminum case

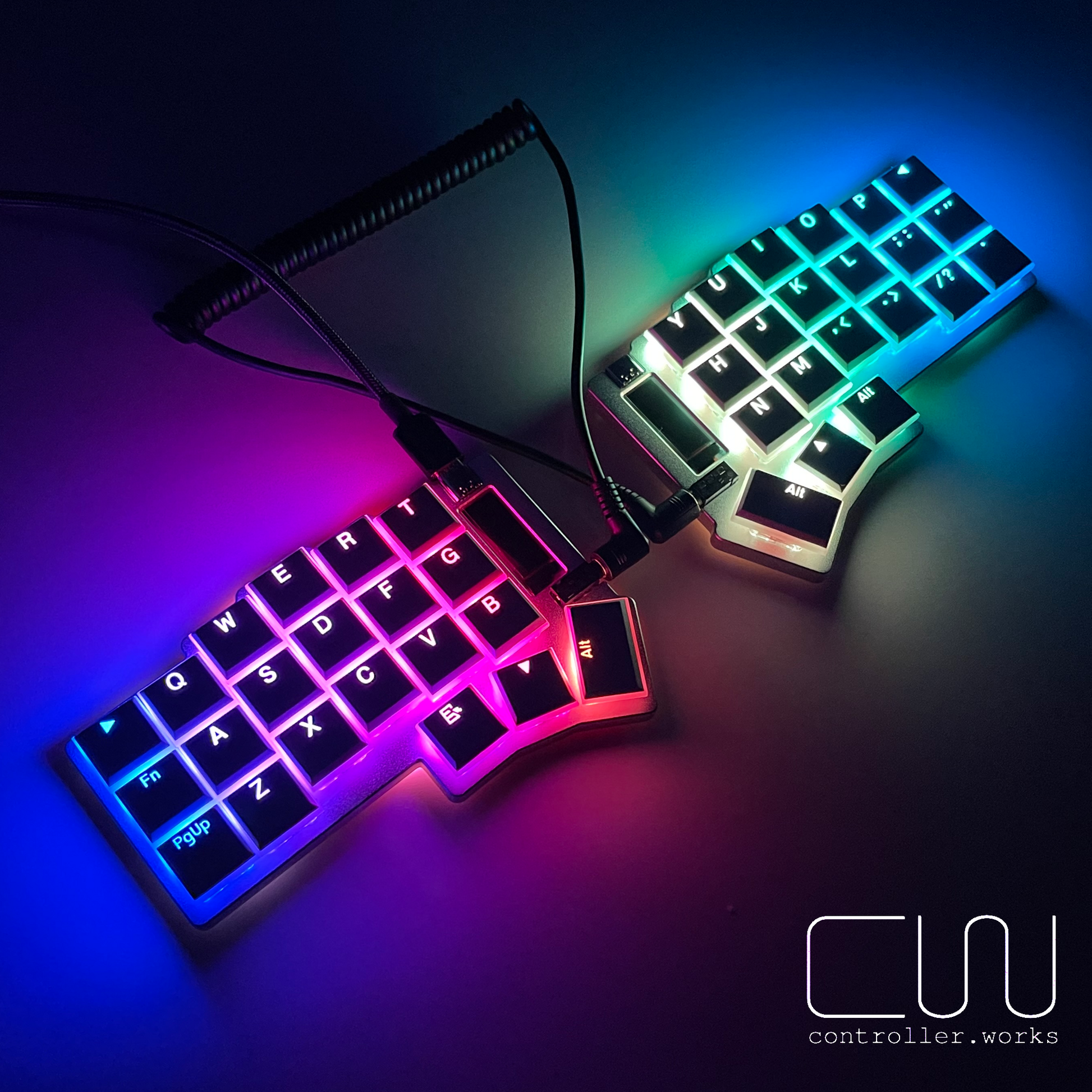

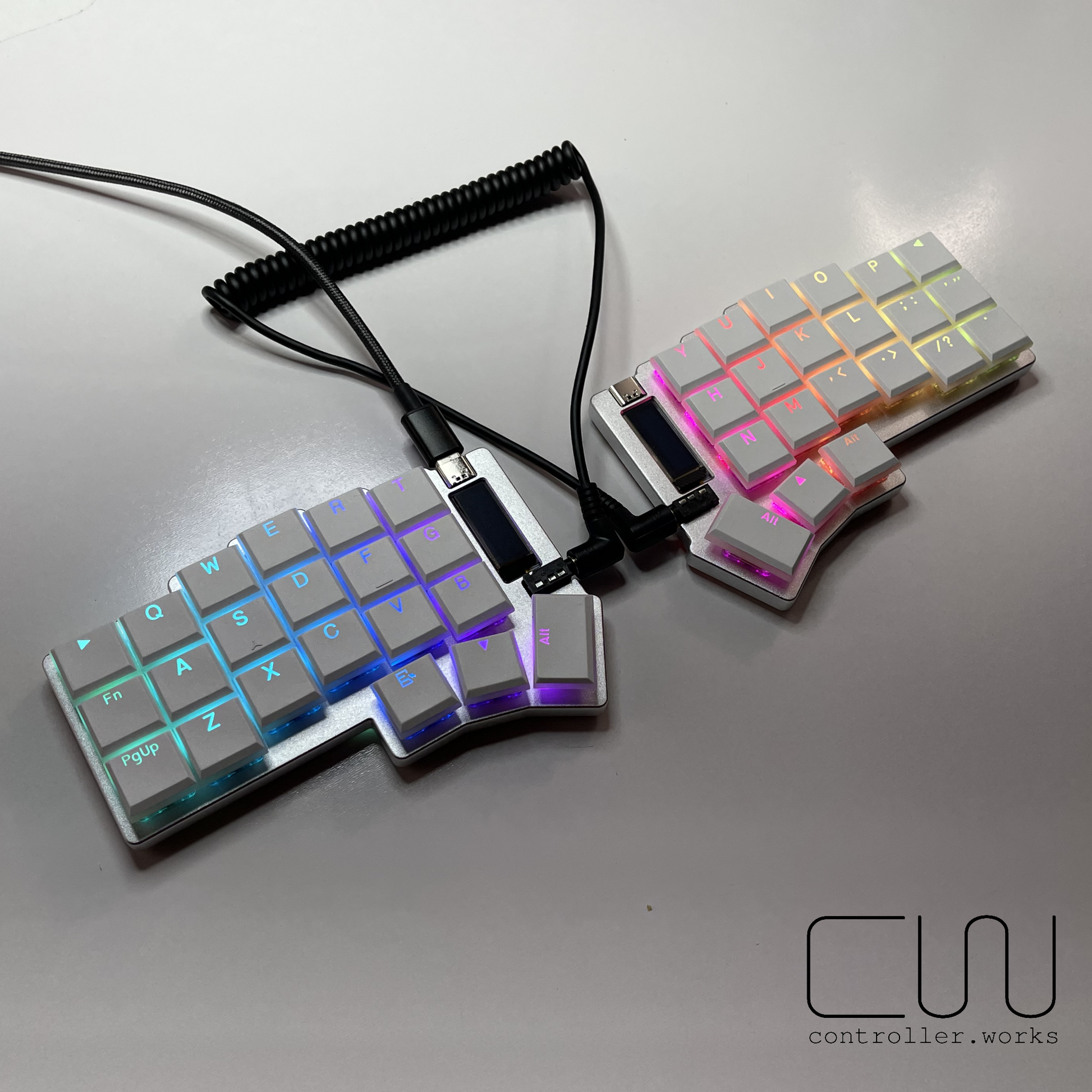

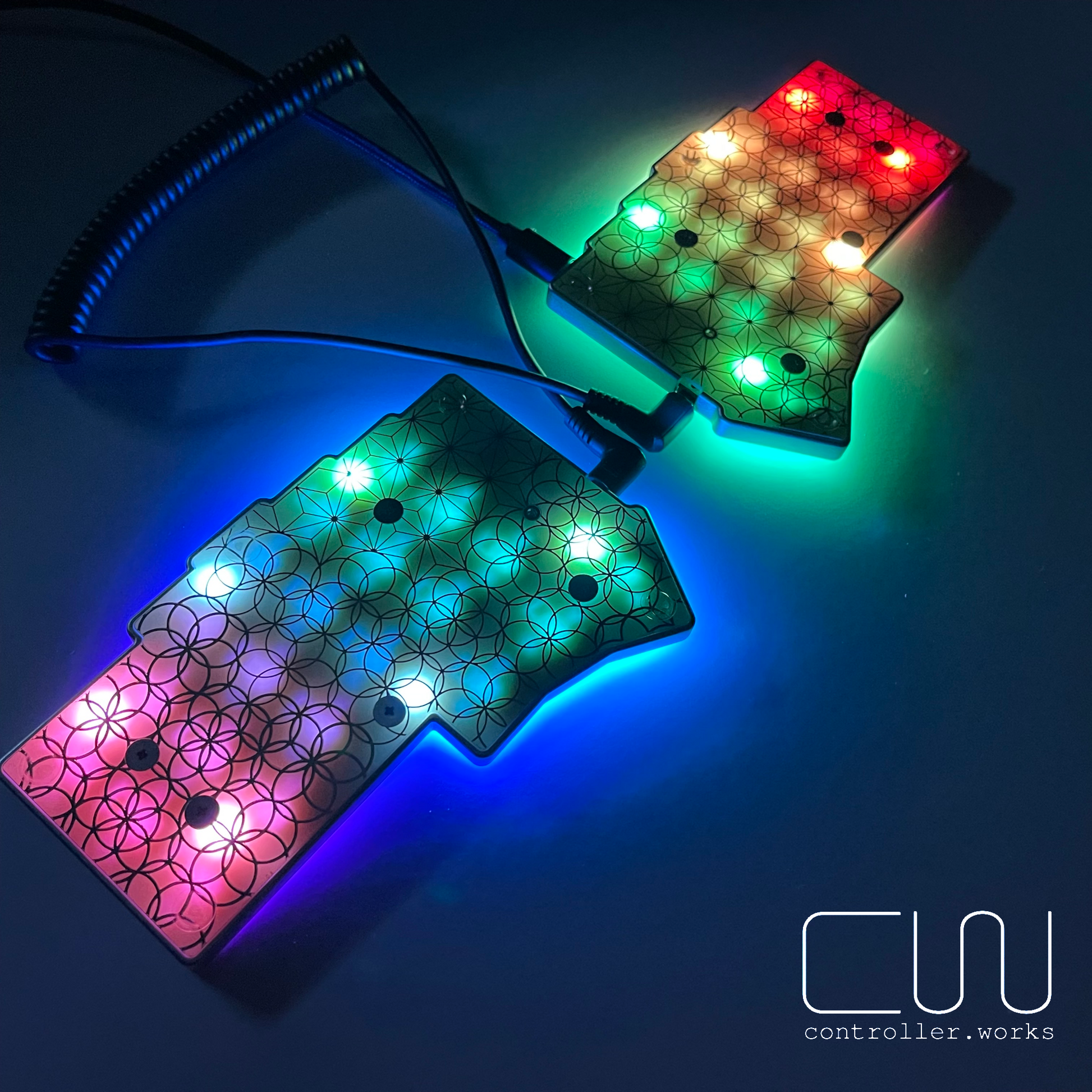

• Per-key LEDs and LED back lighting

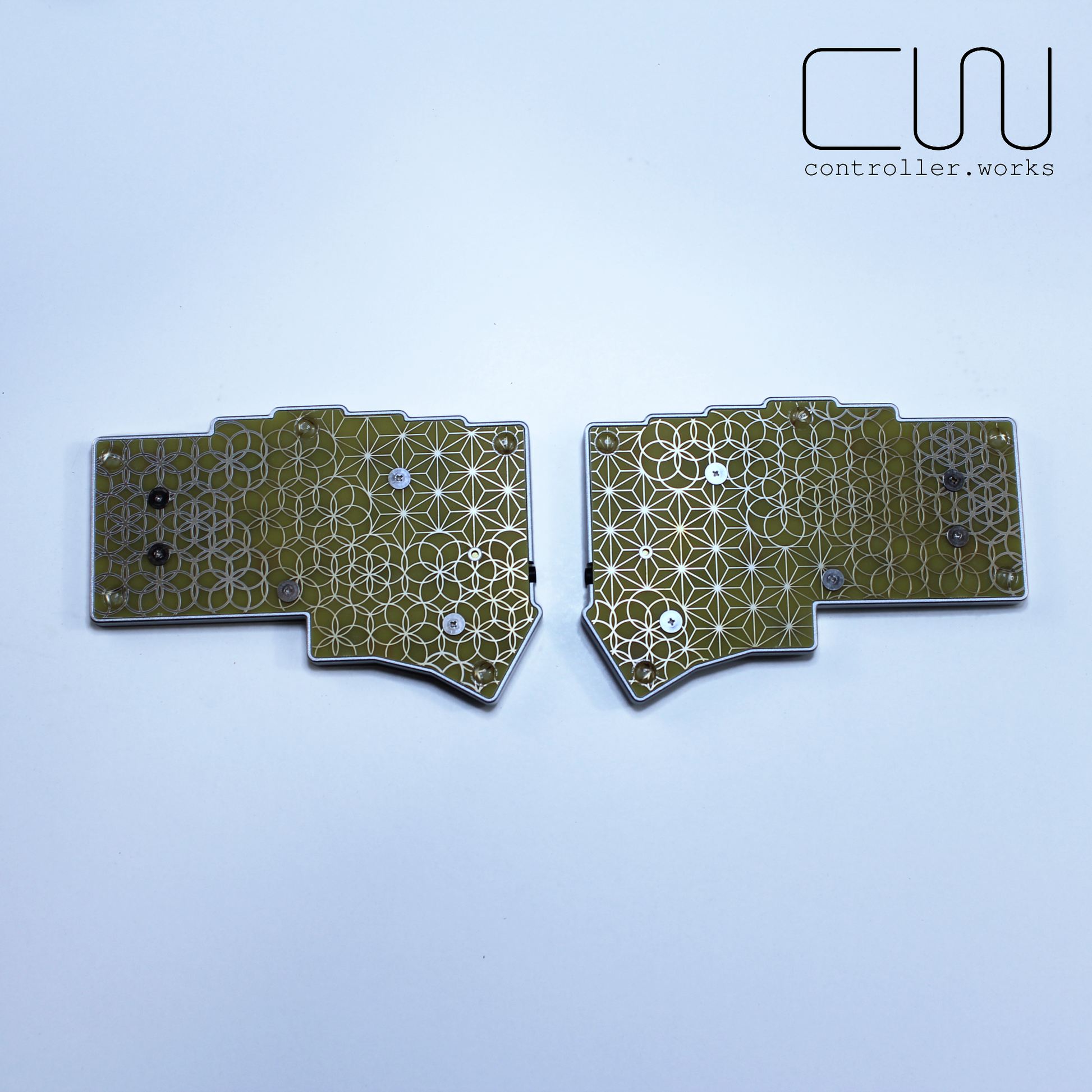

• Shine-through filigree style back plate finished in real gold
• "Chocolate" spacing: switches are spaced 18mm (width) x 17mm (height) apart
• USB-C and TRRS connectors have over-current and ESD protection
• Hot-swap sockets
• Pre-loaded with QMK Corne (CRKBD) firmware with VIA support
• Premium construction: RoHS components, lead-free solder paste, and gold surface finishes used on all PCBs

Included:

• Left and right keyboard halves with integrated micro-controllers, OLED displays, and connectors
• TRRS cable

Required for Operation:

• 42 Kailh "Chocolate" switches
• 40 Kailh "Chocolate" 1u keycaps
• 2 Kailh "Chocolate" 1.5u keycaps
• 1 USB-C cable

Corne OB FAQ

Product Comparison

*** Please note that there may be light tooling marks in the interior of the case. This is expected.
